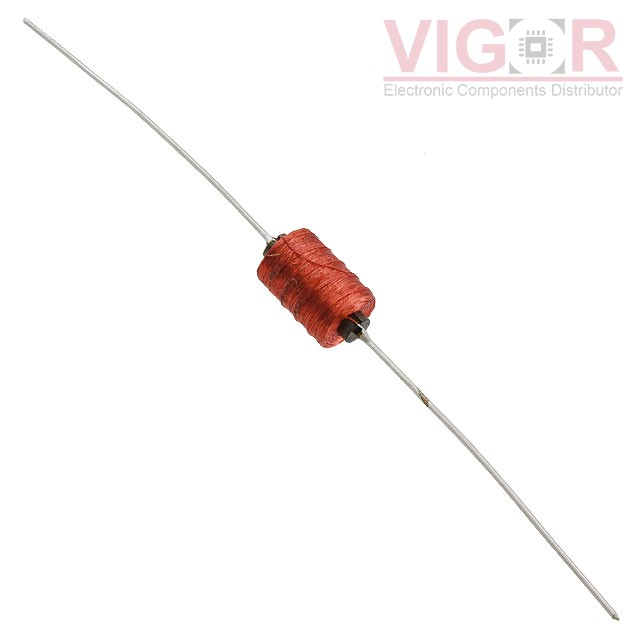

70F152AI-RC

Part No :: 70F152AI-RC

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4439244

Description: FIXED IND 15MH 47MA 113 OHM TH

Catalog: Fixed Inductors

DataSheet: 70F152AI-RC PDF

Country of origin: -

Date code: -

70F152AI-RC Specifications

Type	Description
Series:	70F
Package:	Bulk
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Iron
Inductance:	15 mH
Tolerance:	±5%
Current Rating (Amps):	47 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	113Ohm Max
Q @ Freq:	50 @ 79kHz
Frequency - Self Resonant:	320kHz
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	79 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.300" Dia x 0.500" L (7.62mm x 12.70mm)
Height - Seated (Max):	-
