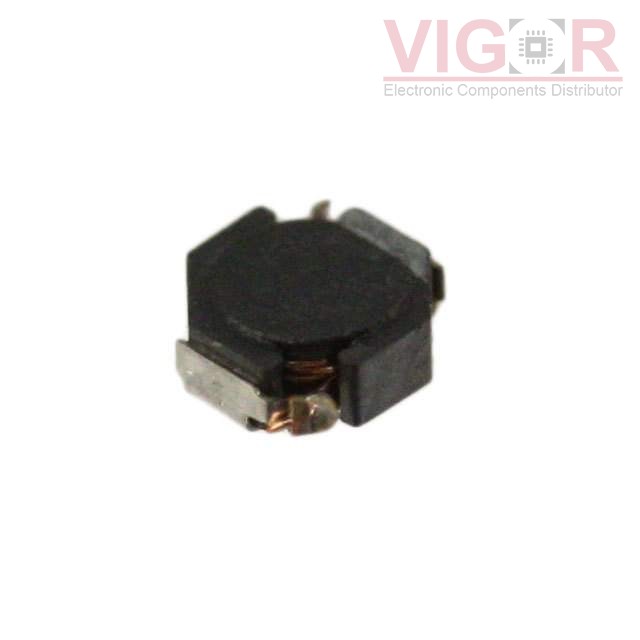

VLF3012ST-2R2M1R4

Part No :: VLF3012ST-2R2M1R4

Manufacturer: TDK Corporation

VIGOR # :: 4439343

Description: FIXED IND 2.2UH 1.4A 72 MOHM SMD

Catalog: Fixed Inductors

DataSheet: VLF3012ST-2R2M1R4 PDF

Country of origin: -

Date code: -

VLF3012ST-2R2M1R4 Specifications

Type	Description
Series:	VLF
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	1.4 A
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	72mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.118" L x 0.110" W (3.00mm x 2.80mm)
Height - Seated (Max):	0.047" (1.20mm)
