LHL08TB5R6M

Part No :: LHL08TB5R6M

Manufacturer: TAIYO YUDEN

VIGOR # :: 4439506

Description: FIXED IND 5.6UH 2.9A 28 MOHM TH

Catalog: Fixed Inductors

DataSheet: LHL08TB5R6M PDF

Country of origin: -

Date code: -

LHL08TB5R6M Specifications

Type	Description
Series:	LH, L Type
Package:	Tape & Box (TB)
Part Status:	Obsolete
Type:	-
Material - Core:	Ferrite
Inductance:	5.6 µH
Tolerance:	±20%
Current Rating (Amps):	2.9 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	28mOhm Max
Q @ Freq:	40 @ 7.96MHz
Frequency - Self Resonant:	23MHz
Ratings:	-
Operating Temperature:	-25°C ~ 105°C
Inductance Frequency - Test:	7.96 MHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical Cylinder
Supplier Device Package:	-
Size / Dimension:	0.354" Dia (9.00mm)
Height - Seated (Max):	0.374" (9.50mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Oct 27 - Oct 31 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of LHL08TB5R6M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

LHL06NB180K

FIXED IND 18UH 360MA 510 MOHM TH

LQH3NPN470NG0L

FIXED IND 47UH 270MA 3.6 OHM SMD

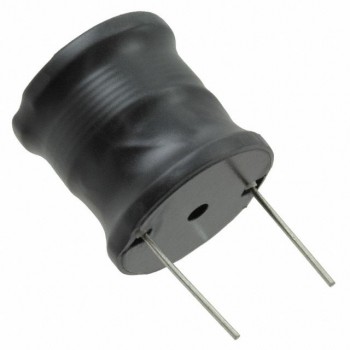

5618
