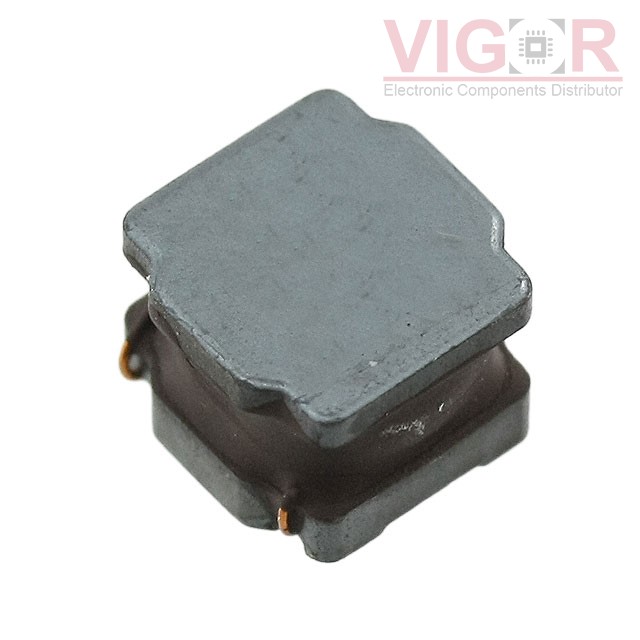

LQH6PPN101M43L

Part No :: LQH6PPN101M43L

Manufacturer: TOKO / Murata

VIGOR # :: 4439513

Description: FIXED IND 100UH 800MA 436 MOHM

Catalog: Fixed Inductors

DataSheet: LQH6PPN101M43L PDF

Country of origin: -

Date code: -

LQH6PPN101M43L Specifications

Type	Description
Series:	LQH6
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	-
Inductance:	100 µH
Tolerance:	±20%
Current Rating (Amps):	800 mA
Current - Saturation (Isat):	920mA
Shielding:	Shielded
DC Resistance (DCR):	436mOhm
Q @ Freq:	-
Frequency - Self Resonant:	3MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	2424 (6060 Metric)
Supplier Device Package:	-
Size / Dimension:	0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max):	0.177" (4.50mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Apr 26 - Apr 30 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of LQH6PPN101M43L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

IMS05BH471K

FIXED IND 470UH 92MA 9.5 OHM TH

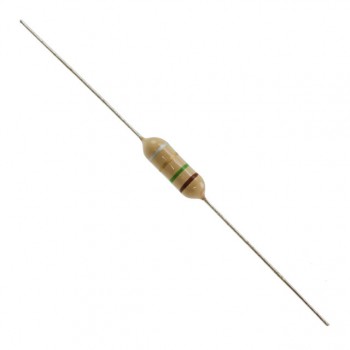

5300-03

FIXED IND 1.5UH 3.1A 20 MOHM TH

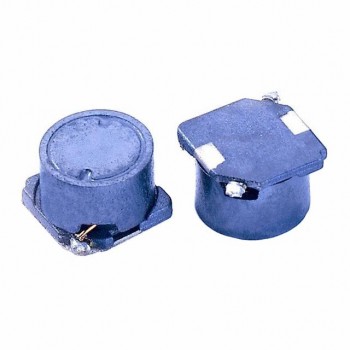

SCB75C-100
