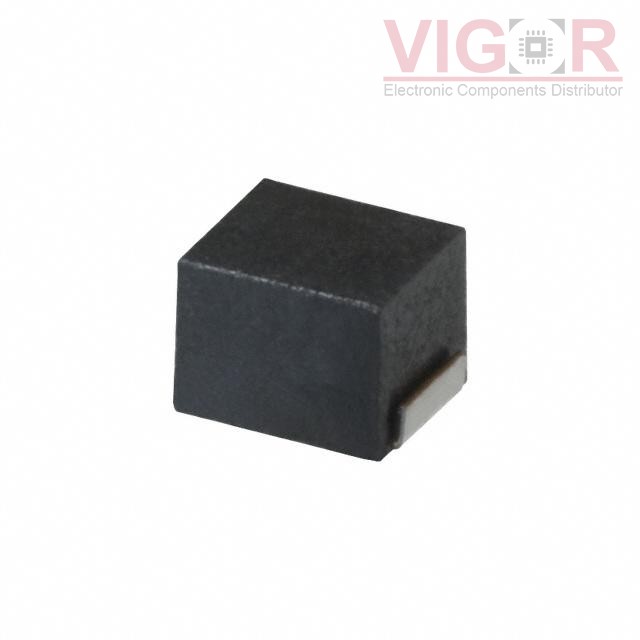

NLHV25T-R18J-PF

Part No :: NLHV25T-R18J-PF

Manufacturer: TDK Corporation

VIGOR # :: 4439710

Description: FIXED IND 180NH 475MA 450 MOHM

Catalog: Fixed Inductors

DataSheet: NLHV25T-R18J-PF PDF

Country of origin: -

Date code: -

NLHV25T-R18J-PF Specifications

Type	Description
Series:	NLHV
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	-
Inductance:	180 nH
Tolerance:	±5%
Current Rating (Amps):	475 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	450mOhm Max
Q @ Freq:	35 @ 25.2MHz
Frequency - Self Resonant:	500MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	25.2 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):	0.071" (1.80mm)
