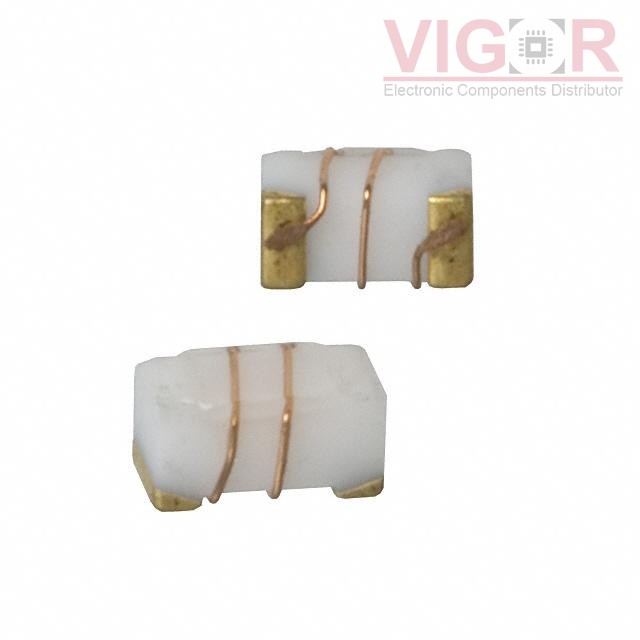

PE-0603CD230GTT

Part No :: PE-0603CD230GTT

Manufacturer: PulseLarsen Antenna

VIGOR # :: 4440231

Description: FIXED IND 23NH 700MA 190 MOHM

Catalog: Fixed Inductors

DataSheet: PE-0603CD230GTT PDF

Country of origin: -

Date code: -

PE-0603CD230GTT Specifications

Type	Description
Series:	0603CD
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	23 nH
Tolerance:	±2%
Current Rating (Amps):	700 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	190mOhm Max
Q @ Freq:	38 @ 250MHz
Frequency - Self Resonant:	2.85GHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	250 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603 (1608 Metric)
Size / Dimension:	0.071" L x 0.049" W (1.80mm x 1.24mm)
Height - Seated (Max):	0.040" (1.02mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

May 09 - May 13 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of PE-0603CD230GTT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

CIG10F1R0MAC

FIXED IND 1UH 700MA 300MOHM SMD

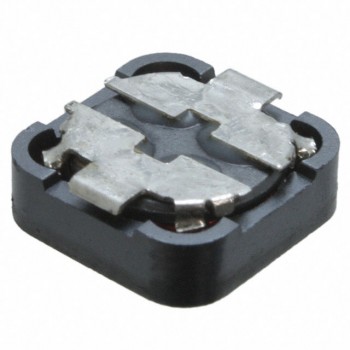

P1169.682NLT
