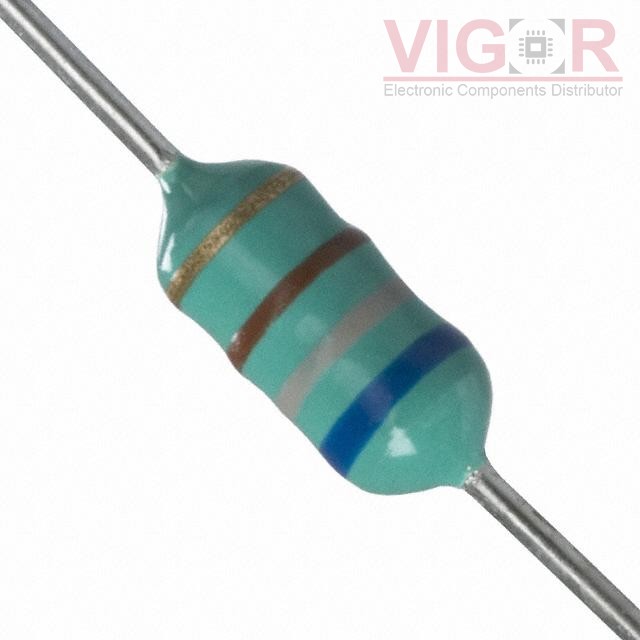

78F681J

Part No :: 78F681J

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4440445

Description: FIXED IND 680UH 45MA 18 OHM TH

Catalog: Fixed Inductors

DataSheet: 78F681J PDF

Country of origin: -

Date code: -

78F681J Specifications

Type	Description
Series:	78F
Package:	Bulk
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	680 µH
Tolerance:	±5%
Current Rating (Amps):	45 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	18Ohm Max
Q @ Freq:	60 @ 790kHz
Frequency - Self Resonant:	2MHz
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	790 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.110" Dia x 0.280" L (2.79mm x 7.11mm)
Height - Seated (Max):	-
