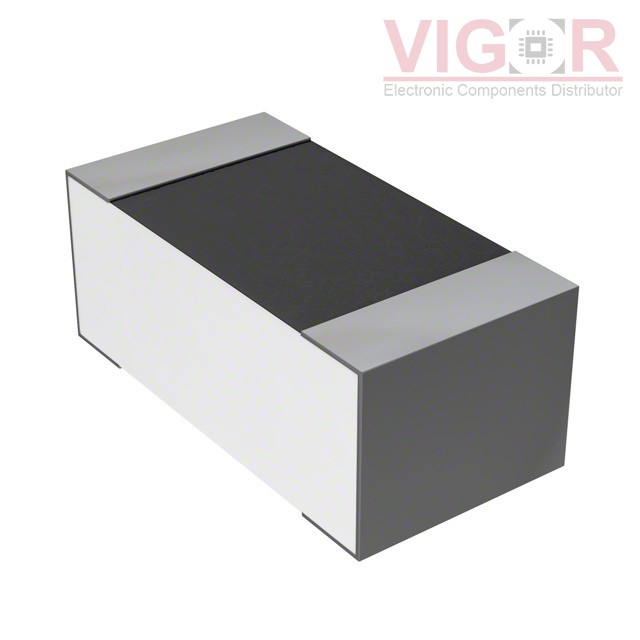

1-1624109-9

Part No :: 1-1624109-9

Manufacturer

VIGOR # :: 4440502

Description: FIXED IND 100NH 100MA 7.5 OHM

Catalog: Fixed Inductors

DataSheet: 1-1624109-9 PDF

Country of origin: -

Date code: -

1-1624109-9 Specifications

Type	Description
Series:	3640, Sigma Inductors
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Thin Film
Material - Core:	-
Inductance:	100 nH
Tolerance:	±2%
Current Rating (Amps):	100 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	7.5Ohm Max
Q @ Freq:	15 @ 500MHz
Frequency - Self Resonant:	1GHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	300 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603 (1608 Metric)
Size / Dimension:	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max):	0.022" (0.55mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Aug 06 - Aug 10 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of 1-1624109-9 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

CIH03Q56NJNC

FIXED IND 56NH 110MA 3.3OHM SMD

HKQ0603W0N8C-T

FIXED IND 0.8NH 850MA 70 MOHM

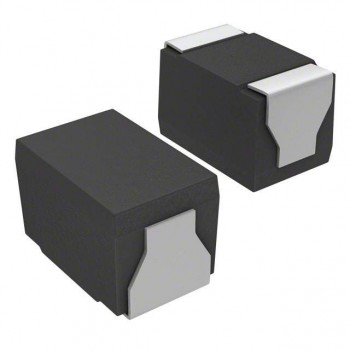

ELJ-LC3R3MF
