PE-0402CD220JTG

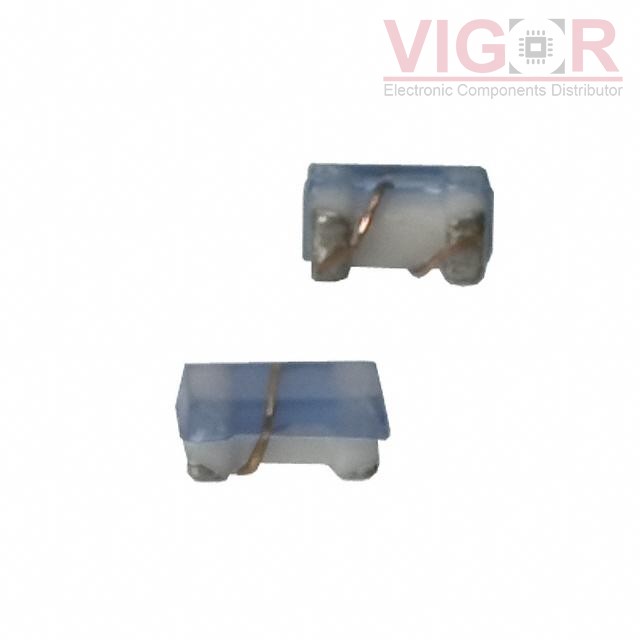

Image is for reference,
please contact us to get the real picture

Part No :: PE-0402CD220JTG

Manufacturer: PulseLarsen Antenna

Description: FIXED IND 22NH 400MA 300 MOHM

Catalog: Fixed Inductors

DataSheet: PE-0402CD220JTG PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of PE-0402CD220JTG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PE-0402CD220JTG Specifications

Type	Description
Series:	0402CD
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	22 nH
Tolerance:	±5%
Current Rating (Amps):	400 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	300mOhm Max
Q @ Freq:	26 @ 250MHz
Frequency - Self Resonant:	2.8GHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	250 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402 (1005 Metric)
Size / Dimension:	0.047" L x 0.026" W (1.19mm x 0.66mm)
Height - Seated (Max):	0.024" (0.61mm)
