SRP4020-R68M

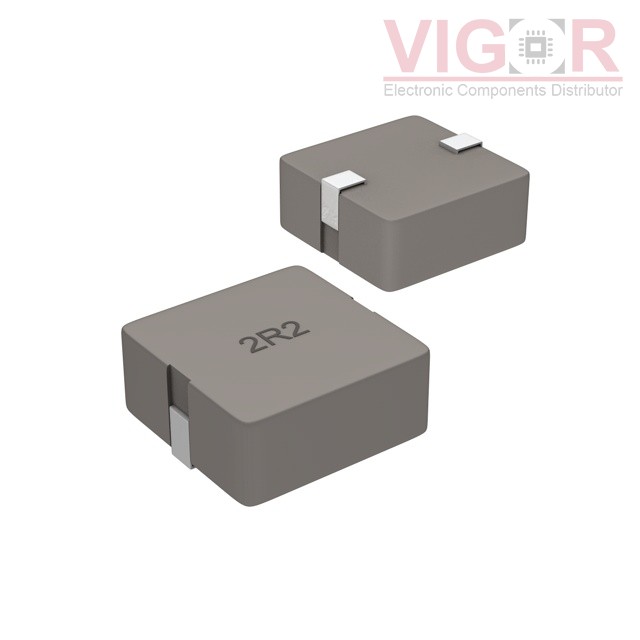

Image is for reference,
please contact us to get the real picture

Part No :: SRP4020-R68M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 680NH 6.3A 17 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SRP4020-R68M PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SRP4020-R68M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SRP4020-R68M Specifications

Type	Description
Series:	SRP4020
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Molded
Material - Core:	Iron
Inductance:	680 nH
Tolerance:	±20%
Current Rating (Amps):	6.3 A
Current - Saturation (Isat):	7A
Shielding:	Shielded
DC Resistance (DCR):	17mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.189" L x 0.157" W (4.80mm x 4.00mm)
Height - Seated (Max):	0.079" (2.00mm)

Please confirm the specifications of the products when ordering.
