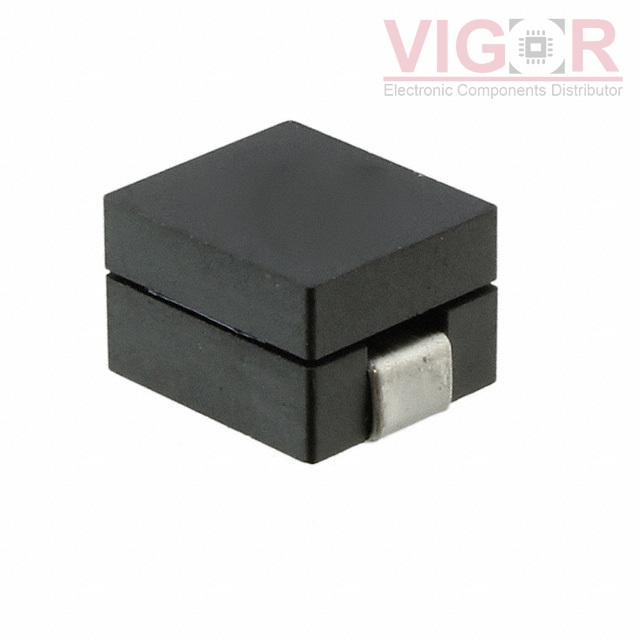

PI60-05-FPIZ

Part No :: PI60-05-FPIZ

Manufacturer: Vicor

VIGOR # :: 4441137

Description: FIXED IND 150NH 40A 0.5 MOHM SMD

Catalog: Fixed Inductors

DataSheet: PI60-05-FPIZ PDF

Country of origin: -

Date code: -

PI60-05-FPIZ Specifications

Type	Description
Series:	PI60-XX
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	-
Material - Core:	Ferrite
Inductance:	150 nH
Tolerance:	±10%
Current Rating (Amps):	40 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	0.5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	2-SMD
Supplier Device Package:	-
Size / Dimension:	0.382" L x 0.319" W (9.70mm x 8.10mm)
Height - Seated (Max):	0.252" (6.40mm)
