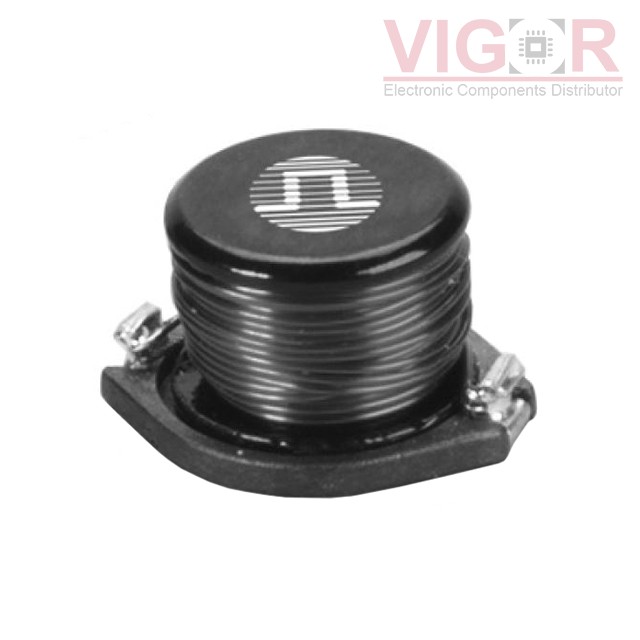

PF0504.122NLT

Part No :: PF0504.122NLT

Manufacturer: PulseLarsen Antenna

VIGOR # :: 4441183

Description: FIXED IND 1.2UH 17.7A 2.6 MOHM

Catalog: Fixed Inductors

DataSheet: PF0504.122NLT PDF

Country of origin: -

Date code: -

PF0504.122NLT Specifications

Type	Description
Series:	PF0504NL
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	1.2 µH
Tolerance:	±20%
Current Rating (Amps):	17.7 A
Current - Saturation (Isat):	48A
Shielding:	Unshielded
DC Resistance (DCR):	2.6mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	-
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.730" L x 0.600" W (18.54mm x 15.24mm)
Height - Seated (Max):	0.450" (11.43mm)
