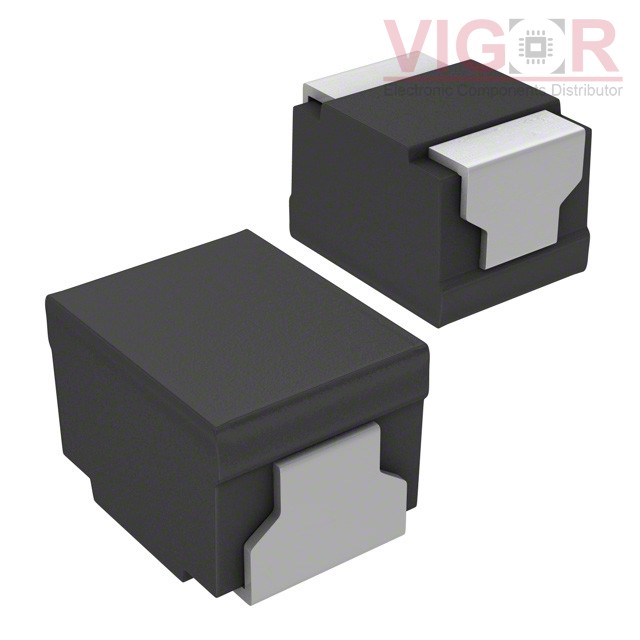

ELJ-DA560JF

Part No :: ELJ-DA560JF

Manufacturer: Panasonic

VIGOR # :: 4441353

Description: FIXED IND 56UH 100MA 6.5 OHM SMD

Catalog: Fixed Inductors

DataSheet: ELJ-DA560JF PDF

Country of origin: -

Date code: -

ELJ-DA560JF Specifications

Type	Description
Series:	DA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	-
Inductance:	56 µH
Tolerance:	±5%
Current Rating (Amps):	100 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	6.5Ohm Max
Q @ Freq:	21 @ 2.52MHz
Frequency - Self Resonant:	8.5MHz
Ratings:	-
Operating Temperature:	-20°C ~ 85°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1210 (3225 Metric)
Supplier Device Package:	-
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):	0.094" (2.40mm)
