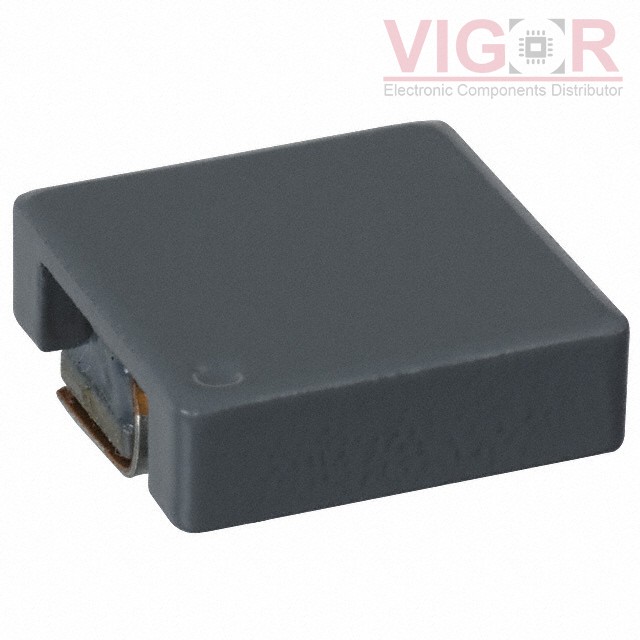

PM12639S-1R2M-RC

Part No :: PM12639S-1R2M-RC

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4441566

Description: FIXED IND 1.2UH 21A 4.5 MOHM SMD

Catalog: Fixed Inductors

DataSheet: PM12639S-1R2M-RC PDF

Country of origin: -

Date code: -

PM12639S-1R2M-RC Specifications

Type	Description
Series:	PM12639S
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Iron
Inductance:	1.2 µH
Tolerance:	±20%
Current Rating (Amps):	21 A
Current - Saturation (Isat):	29A
Shielding:	Shielded
DC Resistance (DCR):	4.5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	37MHz
Ratings:	-
Operating Temperature:	-55°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.547" L x 0.531" W (13.90mm x 13.50mm)
Height - Seated (Max):	0.146" (3.70mm)
