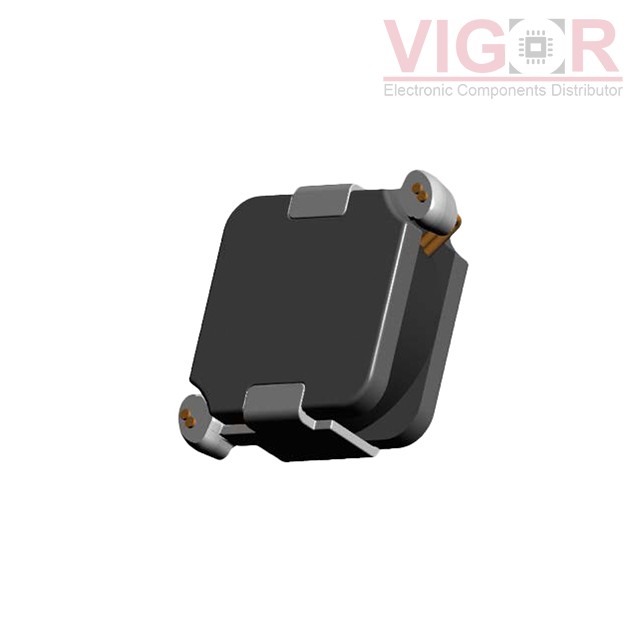

ASPIAIG-H8540-R47M-T

Part No :: ASPIAIG-H8540-R47M-T

Manufacturer: Abracon

VIGOR # :: 4441600

Description: FIXED IND 470NH 11.3A 3.5 MOHM

Catalog: Fixed Inductors

DataSheet: ASPIAIG-H8540-R47M-T PDF

Country of origin: -

Date code: -

ASPIAIG-H8540-R47M-T Specifications

Type	Description
Series:	ASPIAIG-H8540
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Metal
Inductance:	470 nH
Tolerance:	±20%
Current Rating (Amps):	11.3 A
Current - Saturation (Isat):	32A
Shielding:	Shielded
DC Resistance (DCR):	3.5mOhm
Q @ Freq:	-
Frequency - Self Resonant:	57MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.346" L x 0.335" W (8.80mm x 8.50mm)
Height - Seated (Max):	0.157" (4.00mm)
