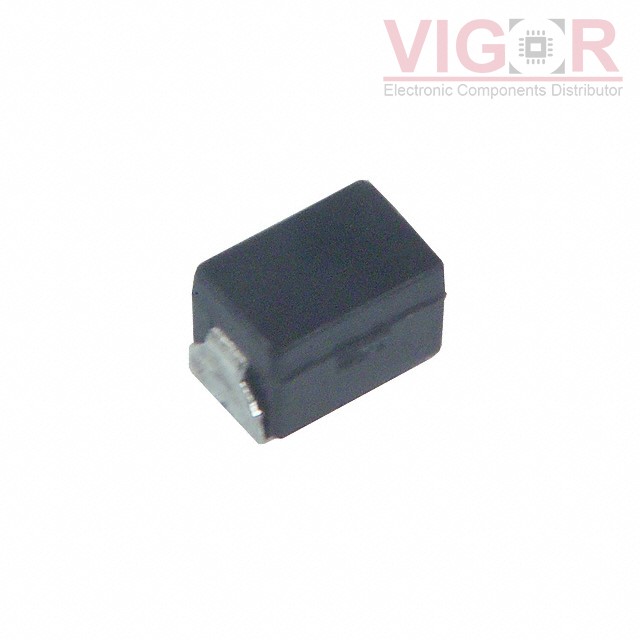

ELJ-ND1R0JF

Part No :: ELJ-ND1R0JF

Manufacturer: Panasonic

VIGOR # :: 4441647

Description: FIXED IND 1UH 120MA 3.88 OHM SMD

Catalog: Fixed Inductors

DataSheet: ELJ-ND1R0JF PDF

Country of origin: -

Date code: -

ELJ-ND1R0JF Specifications

Type	Description
Series:	ND
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Non-Magnetic
Inductance:	1 µH
Tolerance:	±5%
Current Rating (Amps):	120 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	3.88Ohm Max
Q @ Freq:	8 @ 7.96MHz
Frequency - Self Resonant:	80MHz
Ratings:	-
Operating Temperature:	-20°C ~ 85°C
Inductance Frequency - Test:	7.96 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805 (2012 Metric)
Size / Dimension:	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):	0.057" (1.45mm)
