IMS05SH471K

Part No :: IMS05SH471K

Manufacturer: Vishay / Dale

VIGOR # :: 4441755

Description: FIXED IND 470UH 92MA 9.5 OHM TH

Catalog: Fixed Inductors

DataSheet: IMS05SH471K PDF

Country of origin: -

Date code: -

IMS05SH471K Specifications

Type	Description
Series:	IMS-5
Package:	-
Part Status:	Obsolete
Type:	Molded
Material - Core:	Ferrite
Inductance:	470 µH
Tolerance:	±10%
Current Rating (Amps):	92 mA
Current - Saturation (Isat):	58mA
Shielding:	Shielded
DC Resistance (DCR):	9.5Ohm Max
Q @ Freq:	60 @ 790kHz
Frequency - Self Resonant:	5.7MHz
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	790 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max):	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Oct 26 - Oct 30 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of IMS05SH471K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

ELL-5GM220M

FIXED IND 22UH 500MA 380 MOHM

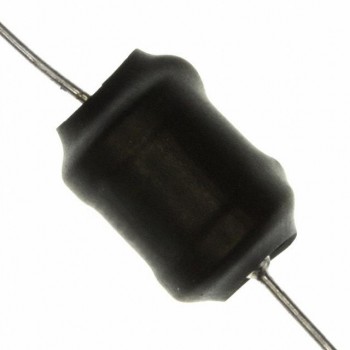

18225C

FIXED IND 2.2MH 300MA 2.2 OHM TH

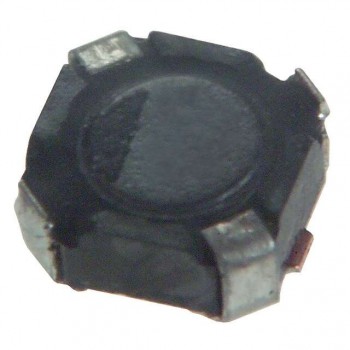

ELL-3GM2R2N
