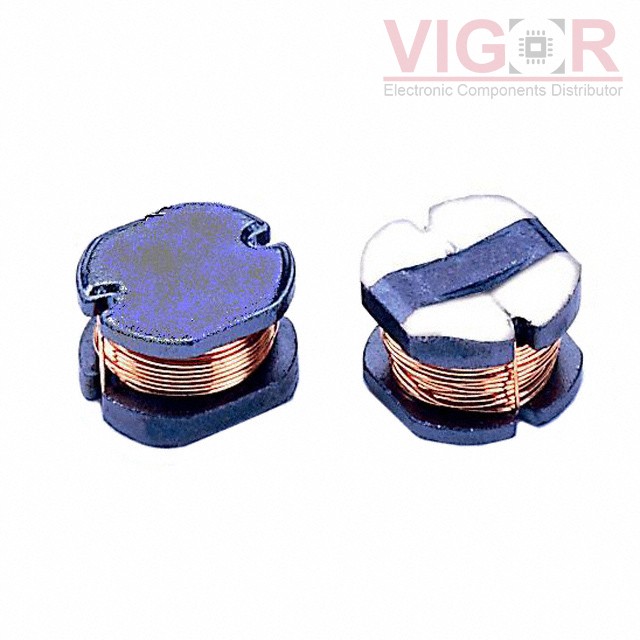

SC75-220

Part No :: SC75-220

Manufacturer: Signal Transformer

VIGOR # :: 4441762

Description: FIXED IND 22UH 2.1A 110 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SC75-220 PDF

Country of origin: -

Date code: -

SC75-220 Specifications

Type	Description
Series:	SC75
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	2.1 A
Current - Saturation (Isat):	1.5A
Shielding:	Unshielded
DC Resistance (DCR):	110mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.319" L x 0.287" W (8.10mm x 7.30mm)
Height - Seated (Max):	0.209" (5.30mm)
