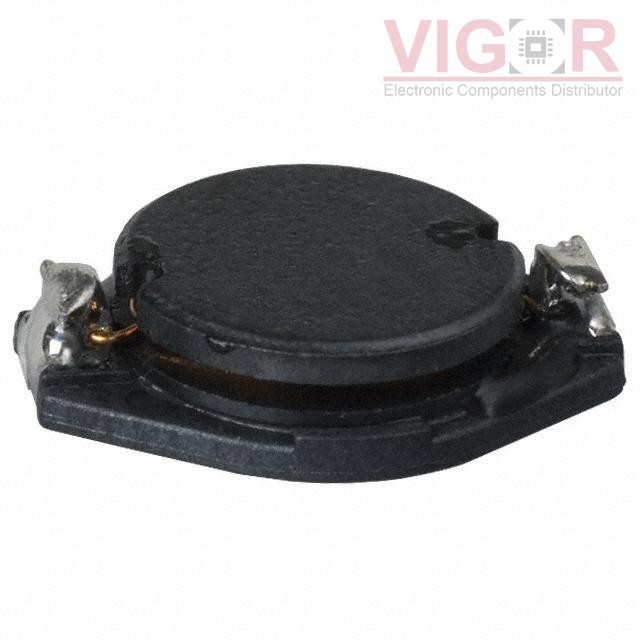

PM3308-101M

Part No :: PM3308-101M

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4441905

Description: FIXED IND 100UH 600MA 800MOHM SM

Catalog: Fixed Inductors

DataSheet: PM3308-101M PDF

Country of origin: -

Date code: -

PM3308-101M Specifications

Type	Description
Series:	PM3308
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	100 µH
Tolerance:	±20%
Current Rating (Amps):	600 mA
Current - Saturation (Isat):	700mA
Shielding:	Unshielded
DC Resistance (DCR):	800mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.512" L x 0.374" W (13.00mm x 9.50mm)
Height - Seated (Max):	0.118" (3.00mm)
