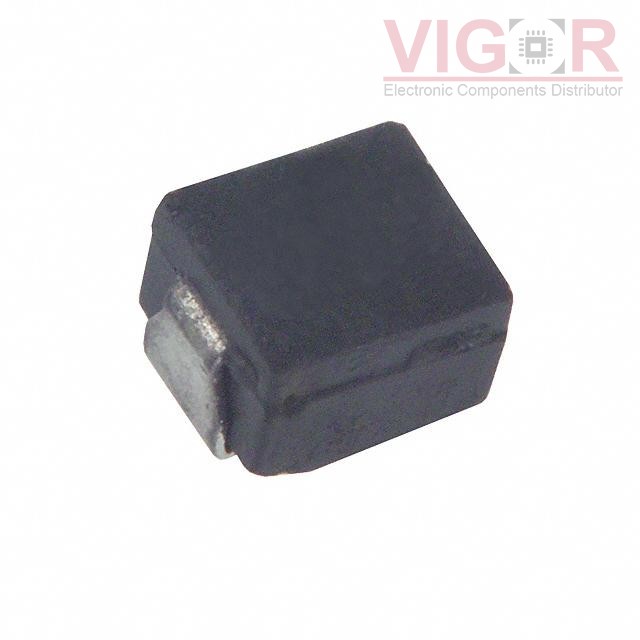

ELJ-FC560KF

Part No :: ELJ-FC560KF

Manufacturer: Panasonic

VIGOR # :: 4442428

Description: FIXED IND 56UH 75MA 12.1 OHM SMD

Catalog: Fixed Inductors

DataSheet: ELJ-FC560KF PDF

Country of origin: -

Date code: -

ELJ-FC560KF Specifications

Type	Description
Series:	FC
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	-
Inductance:	56 µH
Tolerance:	±10%
Current Rating (Amps):	75 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	12.1Ohm Max
Q @ Freq:	20 @ 2.52MHz
Frequency - Self Resonant:	16MHz
Ratings:	-
Operating Temperature:	-20°C ~ 85°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1008 (2520 Metric)
Supplier Device Package:	1008 (2520 Metric)
Size / Dimension:	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):	0.071" (1.80mm)
