PM7232S-R10M

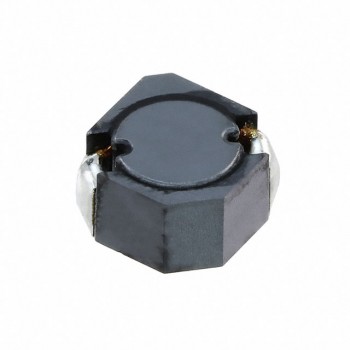

Image is for reference,
please contact us to get the real picture

Part No :: PM7232S-R10M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 100NH 22A 1.1 MOHM SMD

Catalog: Fixed Inductors

DataSheet: PM7232S-R10M PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of PM7232S-R10M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PM7232S-R10M Specifications

Type	Description
Series:	PM7232S
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	-
Inductance:	100 nH
Tolerance:	±20%
Current Rating (Amps):	22 A
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	1.1mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max):	0.126" (3.20mm)

Please confirm the specifications of the products when ordering.
