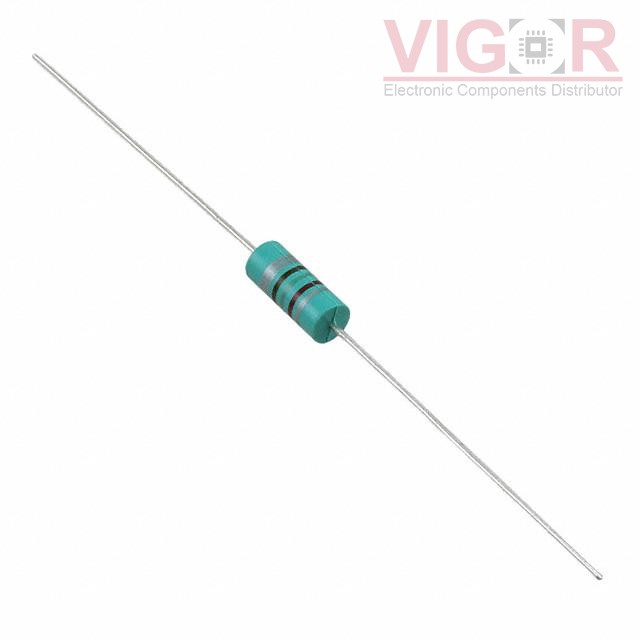

IMS05BH561J

Part No :: IMS05BH561J

Manufacturer: Vishay / Dale

VIGOR # :: 4443155

Description: FIXED IND 560UH 90MA 10.5 OHM TH

Catalog: Fixed Inductors

DataSheet: IMS05BH561J PDF

Country of origin: -

Date code: -

IMS05BH561J Specifications

Type	Description
Series:	IMS-5
Package:	-
Part Status:	Obsolete
Type:	Molded
Material - Core:	Ferrite
Inductance:	560 µH
Tolerance:	±5%
Current Rating (Amps):	90 mA
Current - Saturation (Isat):	55mA
Shielding:	Shielded
DC Resistance (DCR):	10.5Ohm Max
Q @ Freq:	60 @ 790kHz
Frequency - Self Resonant:	4.7MHz
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	790 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max):	-
