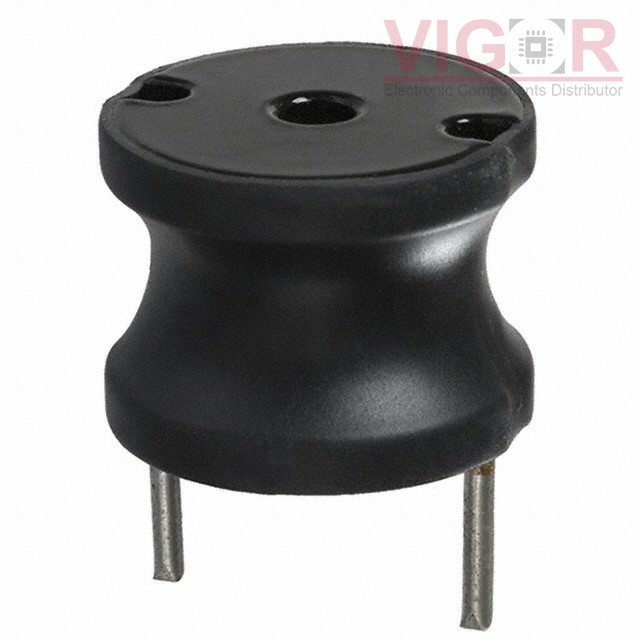

1130-680K

Part No :: 1130-680K

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4443167

Description: FIXED IND 68UH 9A 29 MOHM TH

Catalog: Fixed Inductors

DataSheet: 1130-680K PDF

Country of origin: -

Date code: -

1130-680K Specifications

Type	Description
Series:	1130
Package:	Bulk
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	68 µH
Tolerance:	±10%
Current Rating (Amps):	9 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	29mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical Cylinder
Supplier Device Package:	-
Size / Dimension:	1.100" Dia (27.94mm)
Height - Seated (Max):	0.840" (21.34mm)
