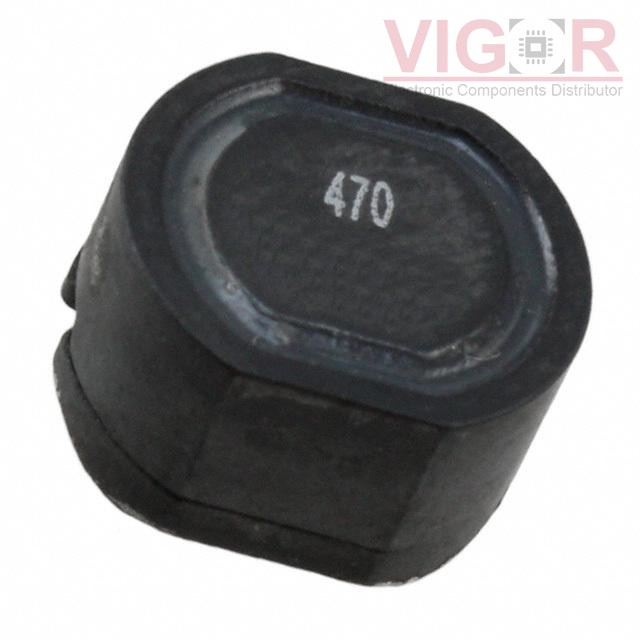

LDS0705-470M-R

Part No :: LDS0705-470M-R

Manufacturer: PowerStor (Eaton)

VIGOR # :: 4443309

Description: FIXED IND 47UH 1.21A 158 MOHM

Catalog: Fixed Inductors

DataSheet: LDS0705-470M-R PDF

Country of origin: -

Date code: -

LDS0705-470M-R Specifications

Type	Description
Series:	LDS0705
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	47 µH
Tolerance:	±20%
Current Rating (Amps):	1.21 A
Current - Saturation (Isat):	1.18A
Shielding:	Shielded
DC Resistance (DCR):	158mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max):	0.197" (5.00mm)
