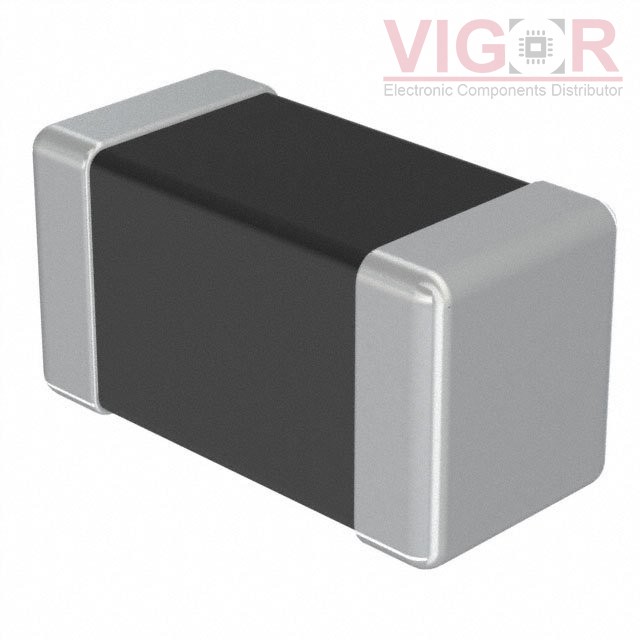

HKQ04023N7B-E

Part No :: HKQ04023N7B-E

Manufacturer: TAIYO YUDEN

VIGOR # :: 4443341

Description: FIXED IND 3.7NH 240MA 350 MOHM

Catalog: Fixed Inductors

DataSheet: HKQ04023N7B-E PDF

Country of origin: -

Date code: -

HKQ04023N7B-E Specifications

Type	Description
Series:	HK, Q Type
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Multilayer
Material - Core:	Ceramic
Inductance:	3.7 nH
Tolerance:	±0.1nH
Current Rating (Amps):	240 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	350mOhm Max
Q @ Freq:	8 @ 500MHz
Frequency - Self Resonant:	6.5GHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	500 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	01005 (0402 Metric)
Supplier Device Package:	01005 (0402 Metric)
Size / Dimension:	0.016" L x 0.008" W (0.40mm x 0.20mm)
Height - Seated (Max):	0.009" (0.22mm)
