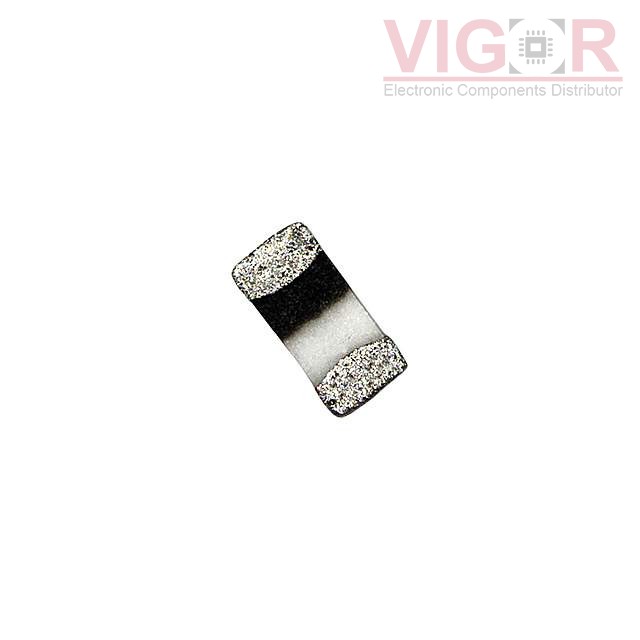

PE-0402CH120JTT

Part No :: PE-0402CH120JTT

Manufacturer: PulseLarsen Antenna

VIGOR # :: 4443416

Description: FIXED IND 12NH 300MA 390 MOHM

Catalog: Fixed Inductors

DataSheet: PE-0402CH120JTT PDF

Country of origin: -

Date code: -

PE-0402CH120JTT Specifications

Type	Description
Series:	0402CH
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Multilayer
Material - Core:	Ceramic
Inductance:	12 nH
Tolerance:	±5%
Current Rating (Amps):	300 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	390mOhm Max
Q @ Freq:	8 @ 100MHz
Frequency - Self Resonant:	2.7GHz
Ratings:	-
Operating Temperature:	-
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402 (1005 Metric)
Size / Dimension:	0.039" L x 0.024" W (1.00mm x 0.60mm)
Height - Seated (Max):	0.024" (0.60mm)
