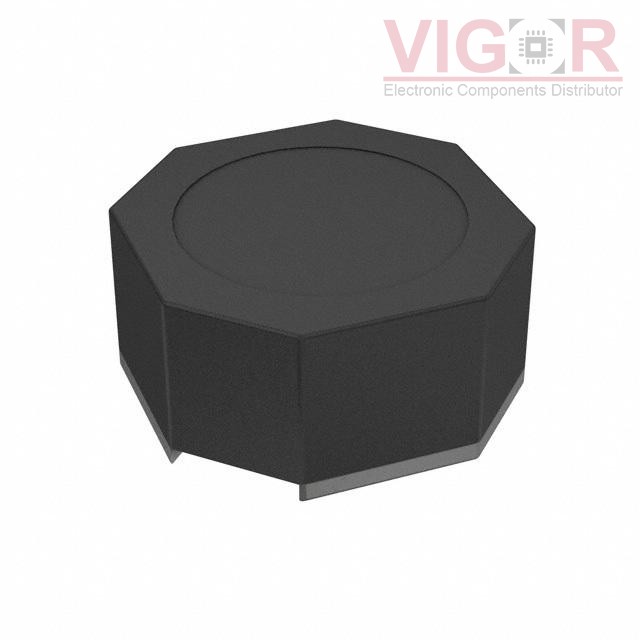

744029220

Part No :: 744029220

Manufacturer: Würth Elektronik Midcom

VIGOR # :: 4443810

Description: FIXED IND 22UH 410MA 970 MOHM

Catalog: Fixed Inductors

DataSheet: 744029220 PDF

Country of origin: -

Date code: -

744029220 Specifications

Type	Description
Series:	WE-TPC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±30%
Current Rating (Amps):	410 mA
Current - Saturation (Isat):	300mA
Shielding:	Shielded
DC Resistance (DCR):	970mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	25MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	2828
Size / Dimension:	0.110" L x 0.110" W (2.80mm x 2.80mm)
Height - Seated (Max):	0.059" (1.50mm)
