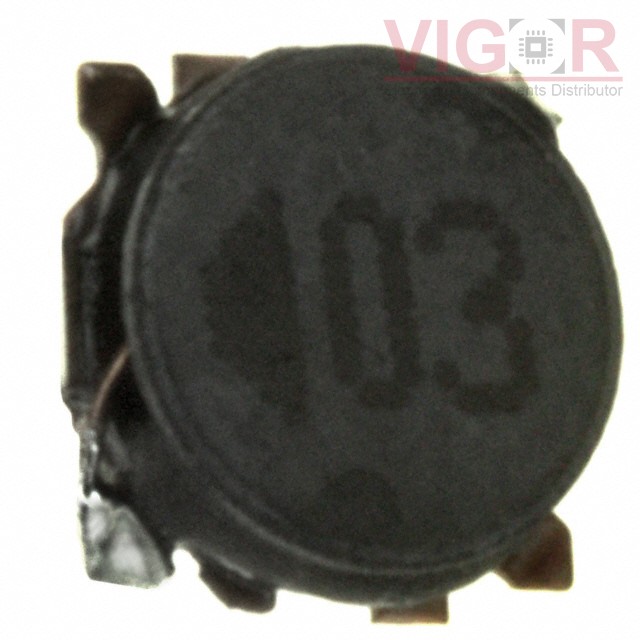

ELL-4GG120M

Part No :: ELL-4GG120M

Manufacturer: Panasonic

VIGOR # :: 4443887

Description: FIXED IND 12UH 650MA 380 MOHM

Catalog: Fixed Inductors

DataSheet: ELL-4GG120M PDF

Country of origin: -

Date code: -

ELL-4GG120M Specifications

Type	Description
Series:	G
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	-
Inductance:	12 µH
Tolerance:	±20%
Current Rating (Amps):	650 mA
Current - Saturation (Isat):	800mA
Shielding:	Shielded
DC Resistance (DCR):	380mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max):	0.055" (1.40mm)
