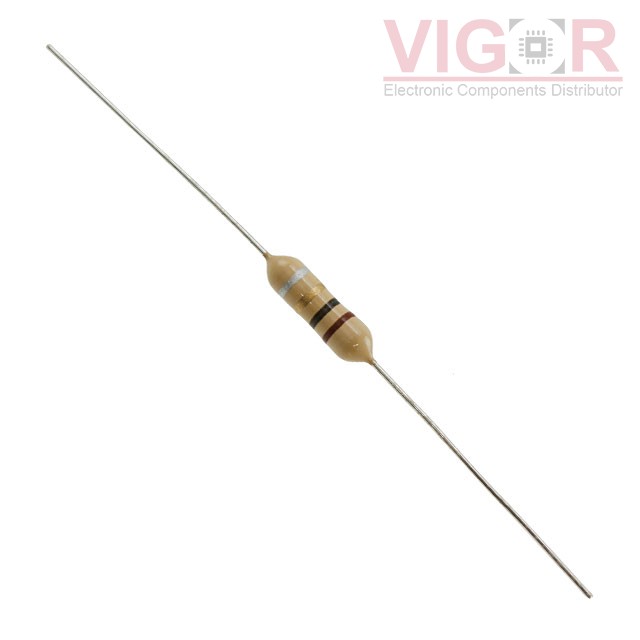

5300-01

Part No :: 5300-01

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4444099

Description: FIXED IND 1UH 3.3A 18 MOHM TH

Catalog: Fixed Inductors

DataSheet: 5300-01 PDF

Country of origin: -

Date code: -

5300-01 Specifications

Type	Description
Series:	5300
Package:	Bulk
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	1 µH
Tolerance:	±10%
Current Rating (Amps):	3.3 A
Current - Saturation (Isat):	3A
Shielding:	Unshielded
DC Resistance (DCR):	18mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	190MHz
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	7.96 MHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.160" Dia x 0.500" L (4.06mm x 12.70mm)
Height - Seated (Max):	-
