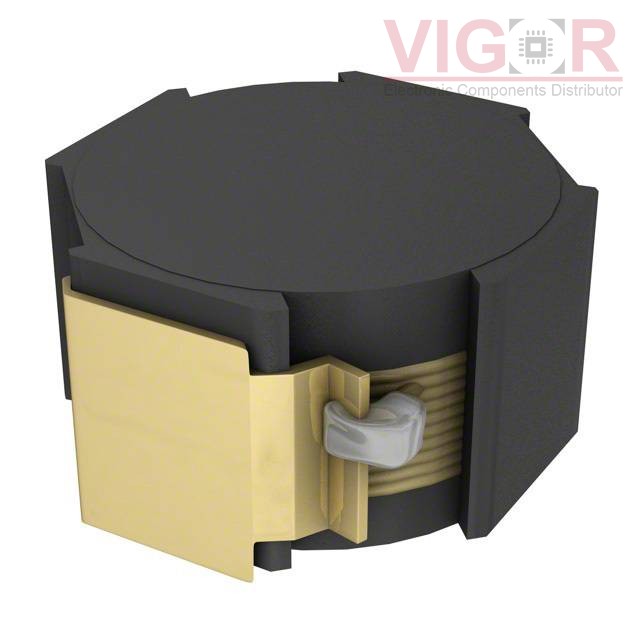

VLF12060T-2R7N100

Part No :: VLF12060T-2R7N100

Manufacturer: TDK Corporation

VIGOR # :: 4444118

Description: FIXED IND 2.7UH 10A 6.4 MOHM SMD

Catalog: Fixed Inductors

DataSheet: VLF12060T-2R7N100 PDF

Country of origin: -

Date code: -

VLF12060T-2R7N100 Specifications

Type	Description
Series:	VLF
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	2.7 µH
Tolerance:	±30%
Current Rating (Amps):	10 A
Current - Saturation (Isat):	12A
Shielding:	Shielded
DC Resistance (DCR):	6.4mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.472" L x 0.461" W (12.00mm x 11.70mm)
Height - Seated (Max):	0.236" (6.00mm)
