SDR1005-152JL

Part No :: SDR1005-152JL

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4444202

Description: FIXED IND 1.5MH 250MA 6.3OHM SMD

Catalog: Fixed Inductors

DataSheet: SDR1005-152JL PDF

Country of origin: -

Date code: -

SDR1005-152JL Specifications

Type	Description
Series:	SDR1005
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	1.5 mH
Tolerance:	±5%
Current Rating (Amps):	250 mA
Current - Saturation (Isat):	300mA
Shielding:	Unshielded
DC Resistance (DCR):	6.3Ohm Max
Q @ Freq:	97 @ 131kHz
Frequency - Self Resonant:	2MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max):	0.197" (5.00mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Oct 31 - Nov 04 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of SDR1005-152JL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

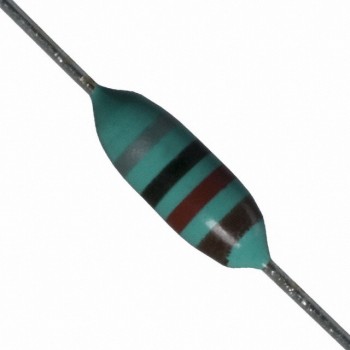

8230-46

FIXED IND 12UH 210MA 2.7 OHM TH

SC1608F-681

FIXED IND 680UH 150MA 12 OHM SMD

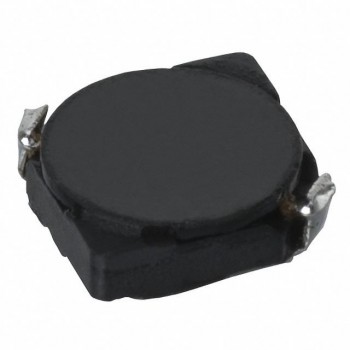

CDRH5D28-680NC
