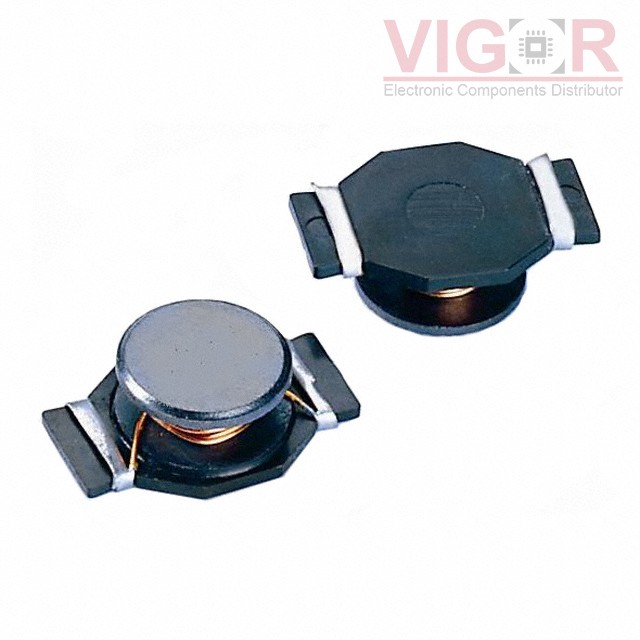

SC4020FH-100

Part No :: SC4020FH-100

Manufacturer: Signal Transformer

VIGOR # :: 4444280

Description: FIXED IND 10UH 5.2A 27 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SC4020FH-100 PDF

Country of origin: -

Date code: -

SC4020FH-100 Specifications

Type	Description
Series:	SC4020FH
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	10 µH
Tolerance:	±20%
Current Rating (Amps):	5.2 A
Current - Saturation (Isat):	5.2A
Shielding:	Unshielded
DC Resistance (DCR):	27mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.768" L x 0.524" W (19.50mm x 13.30mm)
Height - Seated (Max):	0.272" (6.90mm)
