LHL06NB822J

Part No :: LHL06NB822J

Manufacturer: TAIYO YUDEN

VIGOR # :: 4444360

Description: FIXED IND 8.2MH 24MA 84 OHM TH

Catalog: Fixed Inductors

DataSheet: LHL06NB822J PDF

Country of origin: -

Date code: -

LHL06NB822J Specifications

Type	Description
Series:	LH, L Type
Package:	Bulk
Part Status:	Obsolete
Type:	-
Material - Core:	Ferrite
Inductance:	8.2 mH
Tolerance:	±5%
Current Rating (Amps):	24 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	84Ohm Max
Q @ Freq:	50 @ 252kHz
Frequency - Self Resonant:	800kHz
Ratings:	-
Operating Temperature:	-25°C ~ 105°C
Inductance Frequency - Test:	252 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical Cylinder
Supplier Device Package:	-
Size / Dimension:	0.268" Dia (6.80mm)
Height - Seated (Max):	0.433" (11.00mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Sep 04 - Sep 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of LHL06NB822J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

HKQ04025N1H-T

FIXED IND 5.1NH 170MA 680 MOHM

LHL10TB823J

FIXED IND 82MH 33MA 210 OHM TH

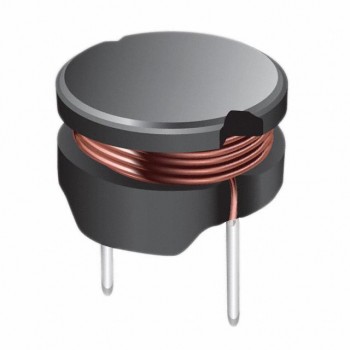

RL855-820K
