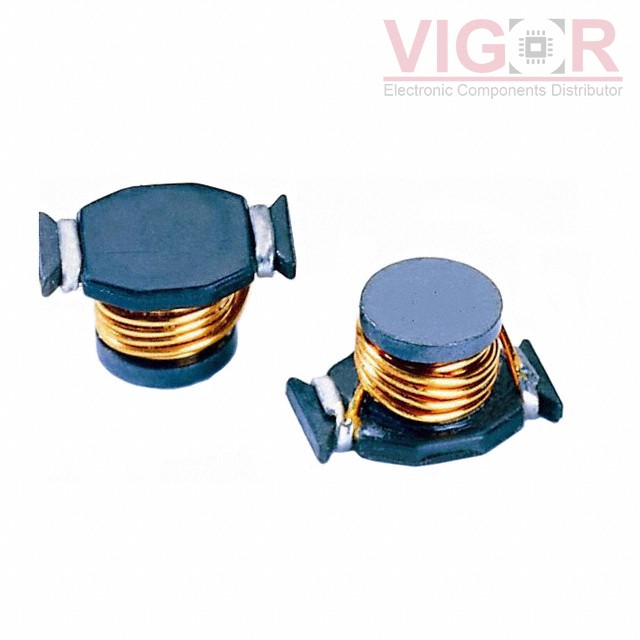

SC1813FH-R47

Image is for reference,
please contact us to get the real picture

Part No :: SC1813FH-R47

Manufacturer: Signal Transformer

Description: FIXED IND 470NH 8A 9.5 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SC1813FH-R47 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SC1813FH-R47 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SC1813FH-R47 Specifications

Type	Description
Series:	SC1813FH
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	470 nH
Tolerance:	±30%
Current Rating (Amps):	8 A
Current - Saturation (Isat):	8A
Shielding:	Unshielded
DC Resistance (DCR):	9.5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.350" L x 0.240" W (8.89mm x 6.10mm)
Height - Seated (Max):	0.197" (5.00mm)

Please confirm the specifications of the products when ordering.
