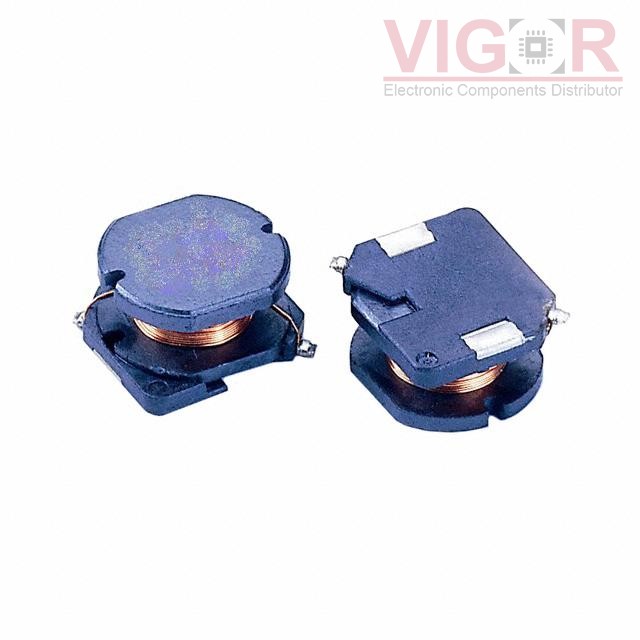

SC105B-561

Part No :: SC105B-561

Manufacturer: Signal Transformer

VIGOR # :: 4444729

Description: FIXED IND 560UH 470MA 1.9 OHM

Catalog: Fixed Inductors

DataSheet: SC105B-561 PDF

Country of origin: -

Date code: -

SC105B-561 Specifications

Type	Description
Series:	SC105B
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	-
Inductance:	560 µH
Tolerance:	±20%
Current Rating (Amps):	470 mA
Current - Saturation (Isat):	330mA
Shielding:	Unshielded
DC Resistance (DCR):	1.9Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.429" L x 0.386" W (10.90mm x 9.80mm)
Height - Seated (Max):	0.236" (6.00mm)
