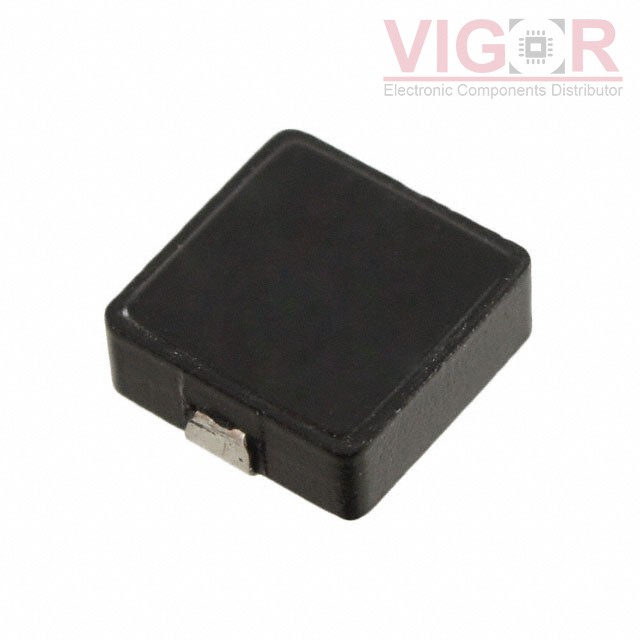

HCP1305-1R0-R

Part No :: HCP1305-1R0-R

Manufacturer: PowerStor (Eaton)

VIGOR # :: 4444943

Description: FIXED IND 1UH 29A 2.5 MOHM SMD

Catalog: Fixed Inductors

DataSheet: HCP1305-1R0-R PDF

Country of origin: -

Date code: -

HCP1305-1R0-R Specifications

Type	Description
Series:	HCP1305
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Iron Powder
Inductance:	1 µH
Tolerance:	±20%
Current Rating (Amps):	29 A
Current - Saturation (Isat):	50A
Shielding:	Unshielded
DC Resistance (DCR):	2.5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.543" L x 0.508" W (13.80mm x 12.90mm)
Height - Seated (Max):	0.197" (5.00mm)
