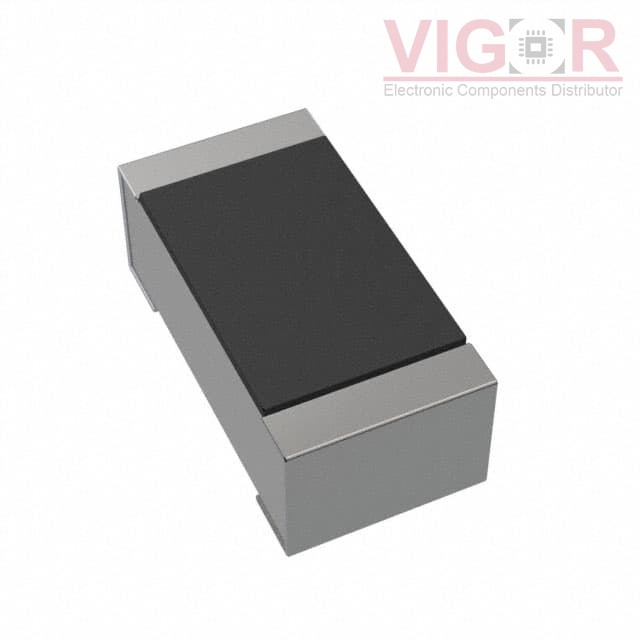

CML0306-22N-JNH

Part No :: CML0306-22N-JNH

Manufacturer: Delta Electronics

VIGOR # :: 4445144

Description: FIXED IND 22NH 120MA 2.55 OHM

Catalog: Fixed Inductors

DataSheet: CML0306-22N-JNH PDF

Country of origin: -

Date code: -

CML0306-22N-JNH Specifications

Type	Description
Series:	CML0306
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Thin Film
Material - Core:	-
Inductance:	22 nH
Tolerance:	±5%
Current Rating (Amps):	120 mA
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	2.55Ohm Max
Q @ Freq:	4 @ 100MHz
Frequency - Self Resonant:	2.8GHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0201 (0603 Metric)
Supplier Device Package:	0201
Size / Dimension:	0.024" L x 0.012" W (0.61mm x 0.31mm)
Height - Seated (Max):	0.013" (0.33mm)
