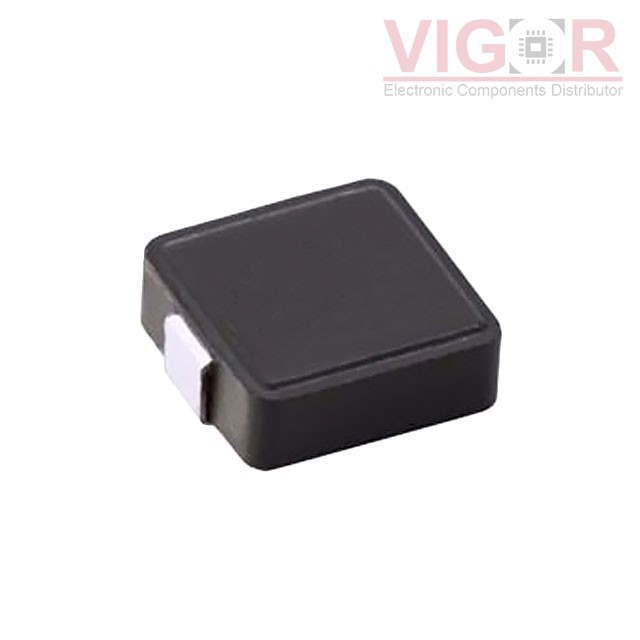

ASPI-4020HI-R56M-T

Part No :: ASPI-4020HI-R56M-T

Manufacturer: Abracon

VIGOR # :: 4445161

Description: FIXED IND 560NH 6.5A 16 MOHM SMD

Catalog: Fixed Inductors

DataSheet: ASPI-4020HI-R56M-T PDF

Country of origin: -

Date code: -

ASPI-4020HI-R56M-T Specifications

Type	Description
Series:	ASPI-4020HI
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Molded
Material - Core:	Iron Alloy
Inductance:	560 nH
Tolerance:	±20%
Current Rating (Amps):	6.5 A
Current - Saturation (Isat):	8.5A
Shielding:	Shielded
DC Resistance (DCR):	16mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	4020
Size / Dimension:	0.177" L x 0.161" W (4.50mm x 4.10mm)
Height - Seated (Max):	0.083" (2.10mm)
