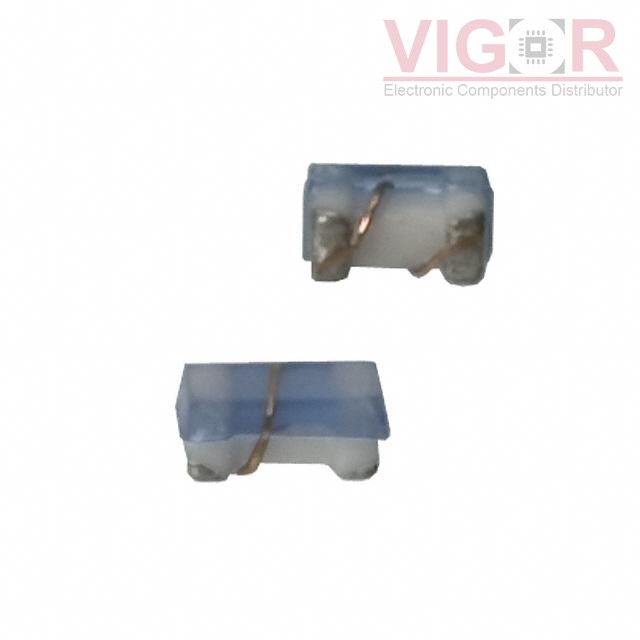

PE-0402CD7N5KTG

Part No :: PE-0402CD7N5KTG

Manufacturer: PulseLarsen Antenna

VIGOR # :: 4445390

Description: FIXED IND 7.5NH 680MA 104 MOHM

Catalog: Fixed Inductors

DataSheet: PE-0402CD7N5KTG PDF

Country of origin: -

Date code: -

PE-0402CD7N5KTG Specifications

Type	Description
Series:	0402CD
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	7.5 nH
Tolerance:	±10%
Current Rating (Amps):	680 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	104mOhm Max
Q @ Freq:	25 @ 250MHz
Frequency - Self Resonant:	5.8GHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	250 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402 (1005 Metric)
Size / Dimension:	0.047" L x 0.026" W (1.19mm x 0.66mm)
Height - Seated (Max):	0.024" (0.61mm)
