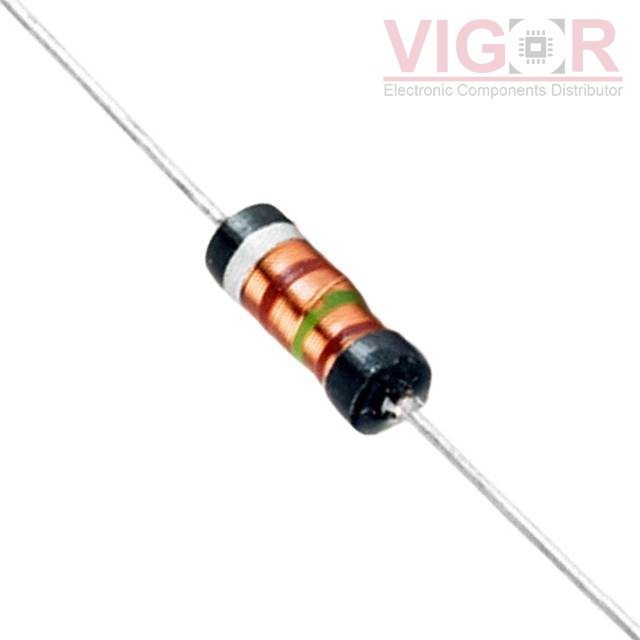

AIAP-01-560K-T

Part No :: AIAP-01-560K-T

Manufacturer: Abracon

VIGOR # :: 4445471

Description: FIXED IND 56UH 650MA 470 MOHM TH

Catalog: Fixed Inductors

DataSheet: AIAP-01-560K-T PDF

Country of origin: -

Date code: -

AIAP-01-560K-T Specifications

Type	Description
Series:	AIAP-01
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	56 µH
Tolerance:	±10%
Current Rating (Amps):	650 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	470mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	5.8MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.130" Dia x 0.360" L (3.30mm x 9.14mm)
Height - Seated (Max):	-
