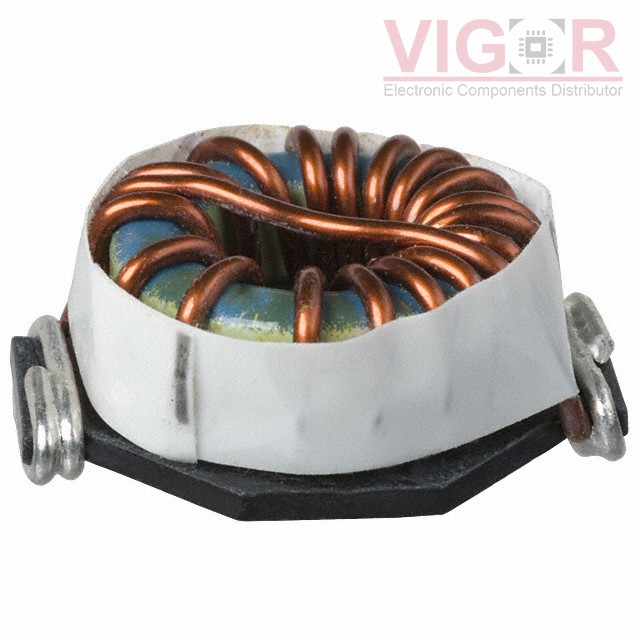

PM2110-220K

Part No :: PM2110-220K

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4445522

Description: FIXED IND 22UH 9.7A 10 MOHM SMD

Catalog: Fixed Inductors

DataSheet: PM2110-220K PDF

Country of origin: -

Date code: -

PM2110-220K Specifications

Type	Description
Series:	PM2110
Package:	Bulk
Part Status:	Obsolete
Type:	Toroidal
Material - Core:	Iron
Inductance:	22 µH
Tolerance:	±10%
Current Rating (Amps):	9.7 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	10mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	1.201" L x 1.000" W (30.50mm x 25.40mm)
Height - Seated (Max):	0.570" (14.48mm)
