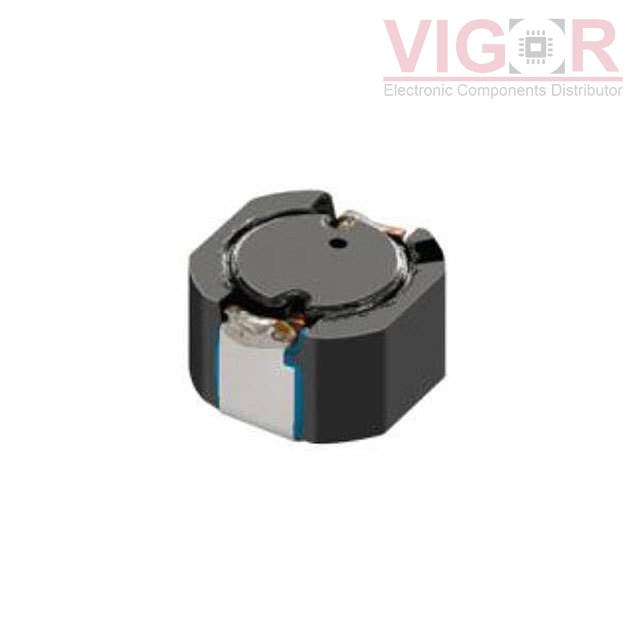

B1135AS-3R6N=P3

Part No :: B1135AS-3R6N=P3

Manufacturer: TOKO / Murata

VIGOR # :: 4445626

Description: FIXED IND 3.6UH 5.5A 17 MOHM SMD

Catalog: Fixed Inductors

DataSheet: B1135AS-3R6N=P3 PDF

Country of origin: -

Date code: -

B1135AS-3R6N=P3 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	3.6 µH
Tolerance:	±30%
Current Rating (Amps):	5.5 A
Current - Saturation (Isat):	4.2A
Shielding:	Shielded
DC Resistance (DCR):	17mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	2-SMD
Size / Dimension:	0.331" L x 0.327" W (8.40mm x 8.30mm)
Height - Seated (Max):	0.197" (5.00mm)
