SC5022FH-3R3

SC5022FH-3R3

Image is for reference,
please contact us to get the real picture

Part No :

SC5022FH-3R3

Manufacturer
Signal Transformer
Description
FIXED IND 3.3UH 9.4A 9 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Oct 20 - Oct 24 2025
DataSheet
SC5022FH-3R3 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of SC5022FH-3R3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SC5022FH-3R3 Specifications
Type Description
Series:SC5022FH
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:-
Inductance:3.3 µH
Tolerance:±30%
Current Rating (Amps):9.4 A
Current - Saturation (Isat):17A
Shielding:Unshielded
DC Resistance (DCR):9mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.880" L x 0.640" W (22.35mm x 16.26mm)
Height - Seated (Max):0.315" (8.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT HKQ04023N9S-T

HKQ04023N9S-T

FIXED IND 3.9NH 240MA 350 MOHM

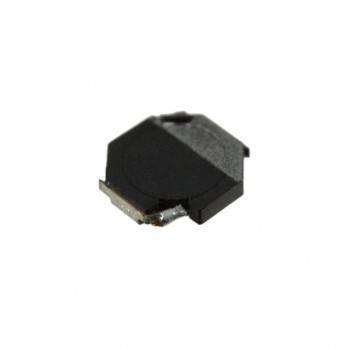

HOT VLF5012AT-3R3M1R3

VLF5012AT-3R3M1R3

FIXED IND 3.3UH 1.3A 140 MOHM

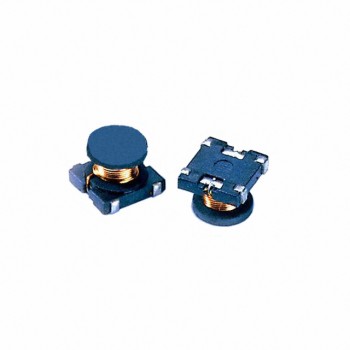

HOT SC32B-330
