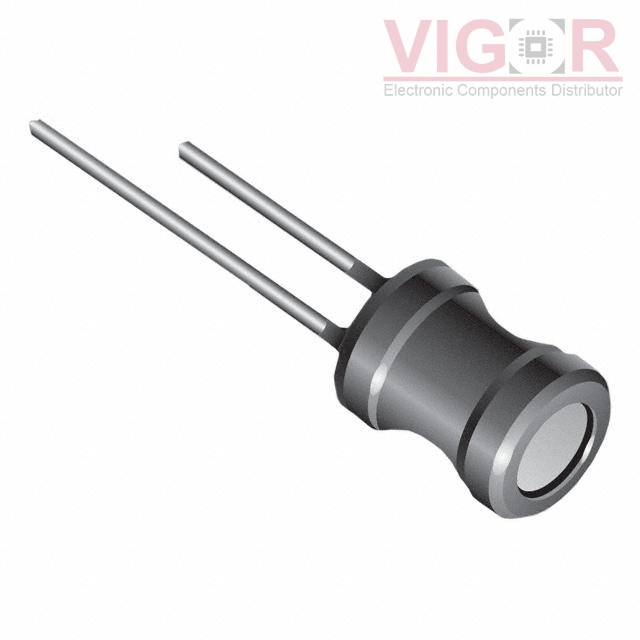

LPV2023-101KL

Part No :: LPV2023-101KL

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4446098

Description: FIXED IND 100UH 4A 60 MOHM TH

Catalog: Fixed Inductors

DataSheet: LPV2023-101KL PDF

Country of origin: -

Date code: -

LPV2023-101KL Specifications

Type	Description
Series:	LPV
Package:	Bulk
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	100 µH
Tolerance:	±10%
Current Rating (Amps):	4 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	60mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical Cylinder
Supplier Device Package:	-
Size / Dimension:	0.787" Dia (20.00mm)
Height - Seated (Max):	0.906" (23.00mm)
