ASPIAIG-H8540-220M-T

ASPIAIG-H8540-220M-T

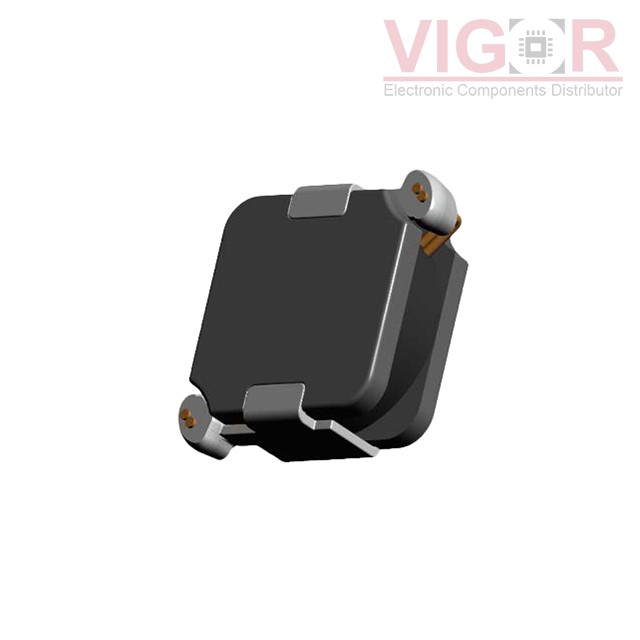

Image is for reference,
please contact us to get the real picture

Part No :

ASPIAIG-H8540-220M-T

Manufacturer
Abracon
Description
FIXED IND 22UH 2.5A 108.6 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Oct 15 - Oct 19 2025
DataSheet
ASPIAIG-H8540-220M-T PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of ASPIAIG-H8540-220M-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ASPIAIG-H8540-220M-T Specifications
Type Description
Series:ASPIAIG-H8540
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Wirewound
Material - Core:Metal
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):2.5 A
Current - Saturation (Isat):4.2A
Shielding:Shielded
DC Resistance (DCR):108.6mOhm
Q @ Freq:-
Frequency - Self Resonant:7MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.346" L x 0.335" W (8.80mm x 8.50mm)
Height - Seated (Max):0.157" (4.00mm)
