PM54-560K

PM54-560K

Image is for reference,
please contact us to get the real picture

Part No :

PM54-560K

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 56UH 680MA 420MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Oct 16 - Oct 20 2025
DataSheet
PM54-560K PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PM54-560K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM54-560K Specifications
Type Description
Series:PM54
Package:Tape & Reel (TR)
Part Status:Obsolete
Type:Wirewound
Material - Core:Ferrite
Inductance:56 µH
Tolerance:±10%
Current Rating (Amps):680 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):420mOhm
Q @ Freq:-
Frequency - Self Resonant:12MHz
Ratings:-
Operating Temperature:-30°C ~ 100°C
Inductance Frequency - Test:2.52 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max):0.189" (4.80mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT CIGW252012GM1R0SLE

CIGW252012GM1R0SLE

FIXED IND 1UH SMD

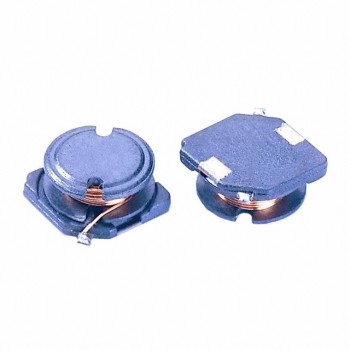

HOT SCB73F-270
