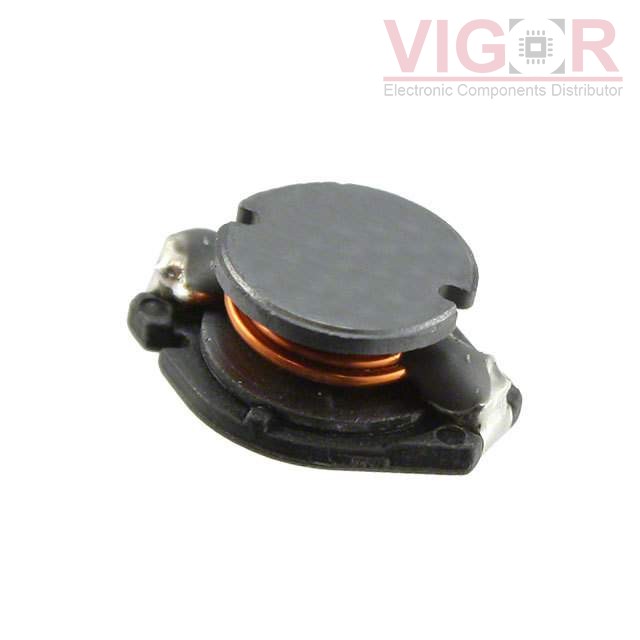

SDR1005-220M

Part No :: SDR1005-220M

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4446480

Description: FIXED IND 22UH 2A 100 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SDR1005-220M PDF

Country of origin: -

Date code: -

SDR1005-220M Specifications

Type	Description
Series:	SDR1005
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	2 A
Current - Saturation (Isat):	2.5A
Shielding:	Unshielded
DC Resistance (DCR):	100mOhm Max
Q @ Freq:	29 @ 2.52MHz
Frequency - Self Resonant:	18MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max):	0.197" (5.00mm)
