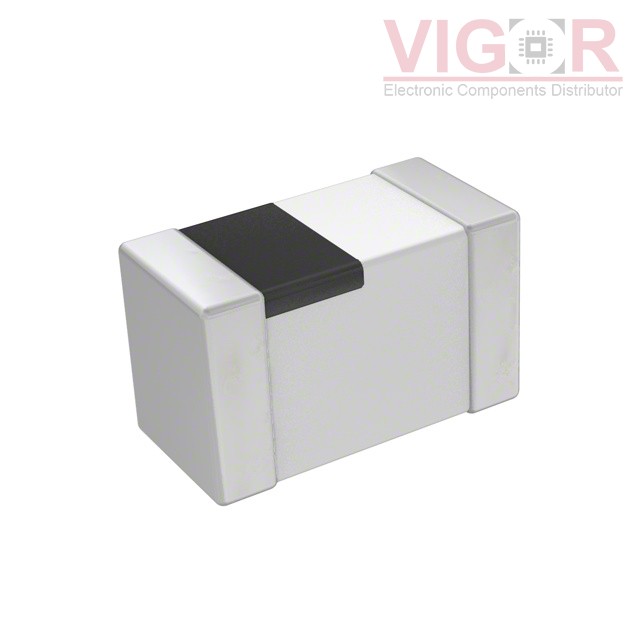

MLG1608B22NJTD25

Part No :: MLG1608B22NJTD25

Manufacturer: TDK Corporation

VIGOR # :: 4446970

Description: FIXED IND 22NH 500MA 350 MOHM

Catalog: Fixed Inductors

DataSheet: MLG1608B22NJTD25 PDF

Country of origin: -

Date code: -

MLG1608B22NJTD25 Specifications

Type	Description
Series:	MLG
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Multilayer
Material - Core:	Ceramic, Non-Magnetic
Inductance:	22 nH
Tolerance:	±5%
Current Rating (Amps):	500 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	350mOhm Max
Q @ Freq:	12 @ 100MHz
Frequency - Self Resonant:	2.3GHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603 (1608 Metric)
Size / Dimension:	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max):	0.037" (0.95mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Oct 27 - Oct 31 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of MLG1608B22NJTD25 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
