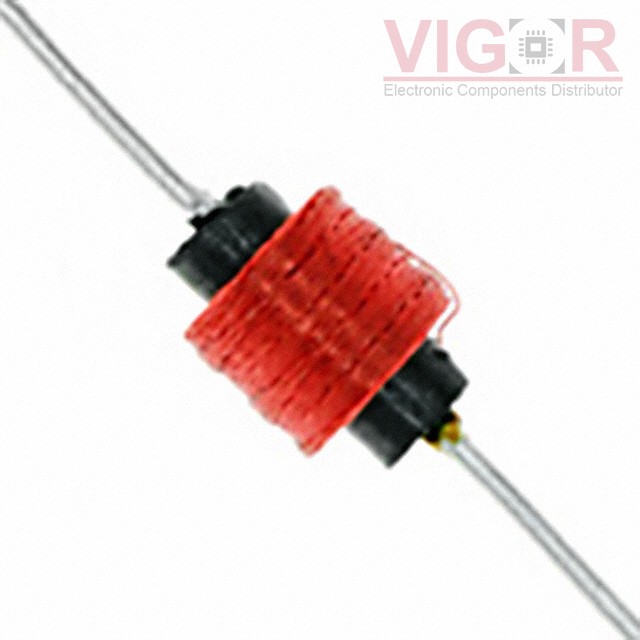

70F103AI-RC

Part No :: 70F103AI-RC

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4447102

Description: FIXED IND 1MH 79MA 24 OHM TH

Catalog: Fixed Inductors

DataSheet: 70F103AI-RC PDF

Country of origin: -

Date code: -

70F103AI-RC Specifications

Type	Description
Series:	70F
Package:	Bulk
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Iron
Inductance:	1 mH
Tolerance:	±5%
Current Rating (Amps):	79 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	24Ohm Max
Q @ Freq:	30 @ 790kHz
Frequency - Self Resonant:	1.4MHz
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	790 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.220" Dia x 0.250" L (5.59mm x 6.35mm)
Height - Seated (Max):	-
