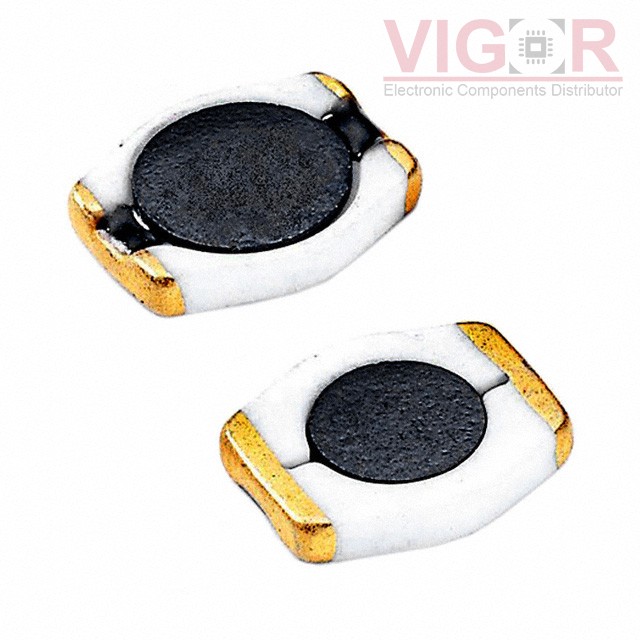

SC2506-470

Part No :: SC2506-470

Manufacturer: Signal Transformer

VIGOR # :: 4447254

Description: FIXED IND 47UH 560MA 880 MOHM

Catalog: Fixed Inductors

DataSheet: SC2506-470 PDF

Country of origin: -

Date code: -

SC2506-470 Specifications

Type	Description
Series:	SC2506
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	-
Material - Core:	-
Inductance:	47 µH
Tolerance:	±20%
Current Rating (Amps):	560 mA
Current - Saturation (Isat):	500mA
Shielding:	Unshielded
DC Resistance (DCR):	880mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.364" L x 0.310" W (9.25mm x 7.87mm)
Height - Seated (Max):	0.065" (1.65mm)
